Full-Service Capabilities
Heat Treating
Services
Six distinct thermal processing lines across multiple facilities — from 100,000 lb batch loads to precision induction hardening. Every process backed by our AS 9100 and ISO/IEC 17025 certifications.
Massive capacity for the largest components

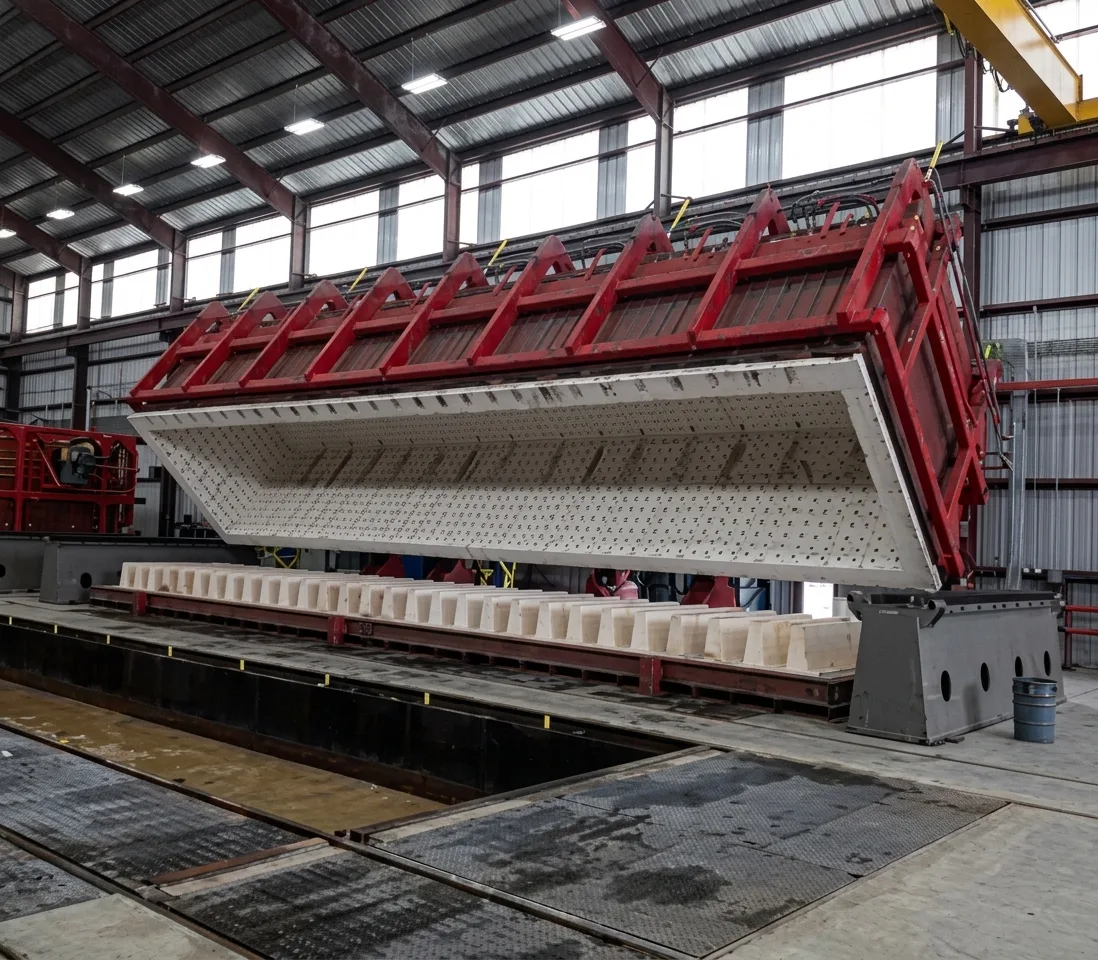

Batch Polymer & Water Quench
Our largest furnaces handle loads up to 100,000 lbs with components as long as 58 feet. Designed for heavy-duty industrial and energy-sector parts requiring precise, repeatable thermal processing.
- Max Load
- 100,000 lbs
- Max Length
- 58 ft
- Work Zone
- 96"W × 48"H
- Max Temp
- 2,200°F
Versatile quench media for demanding specs
Batch Oil, Polymer & Water Quench
Multi-media quench capability supports oil, polymer, and water quenching in a single furnace line. Ideal for aerospace, defense, and high-spec industrial components where quench rate is critical.
- Max Load
- 30,000 lbs
- Max Length
- 25 ft
- Work Zone
- 72"W × 42"H
- Max Temp
- 2,200°F
Precision gas environments for surface chemistry

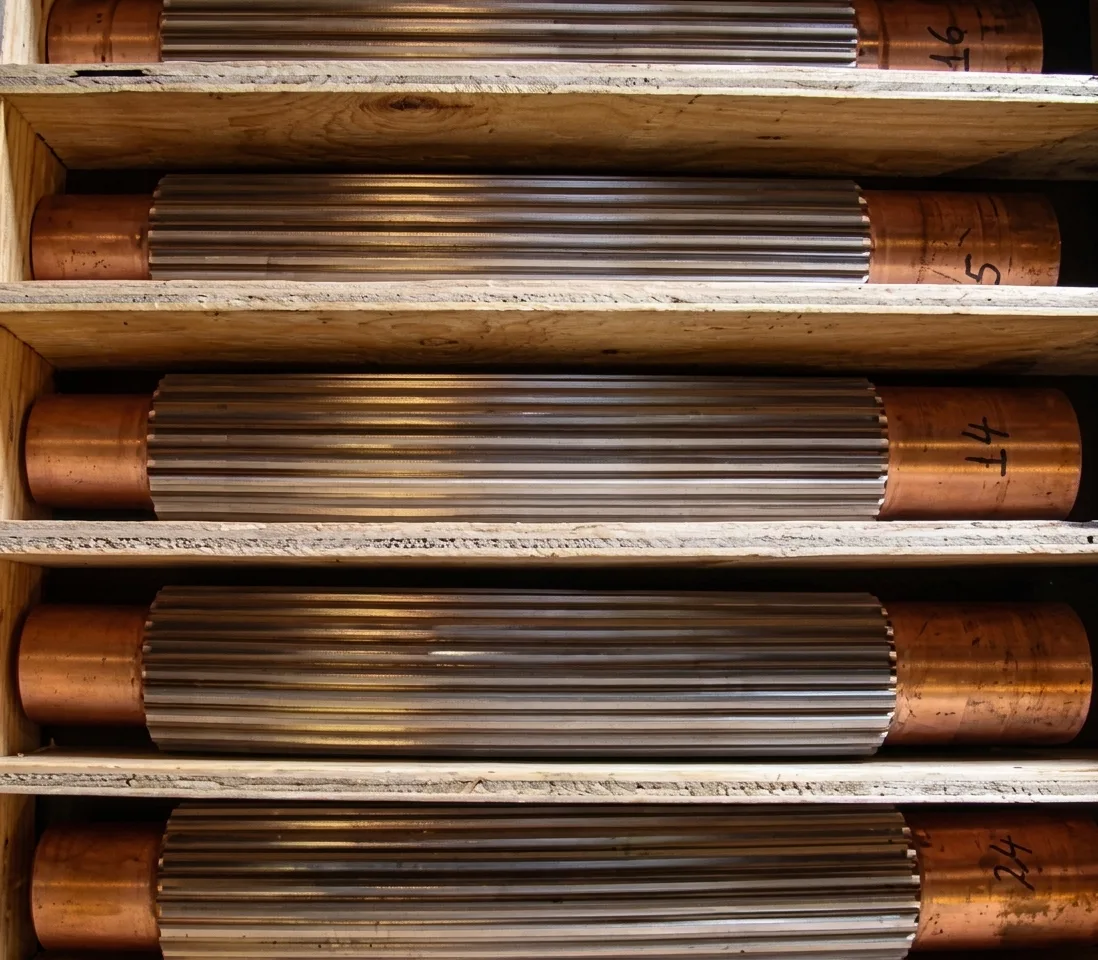

Controlled Atmosphere
Horizontal and vertical atmosphere furnaces for carburizing, carbonitriding, aging, normalizing, hardening, and tempering. Oil or water quench available.
- Max Load
- 4,000 lbs
- Work Zone
- 30"H × 48"W × 84"L
- Quench
- Oil or Water
Minimal distortion for long, slender parts

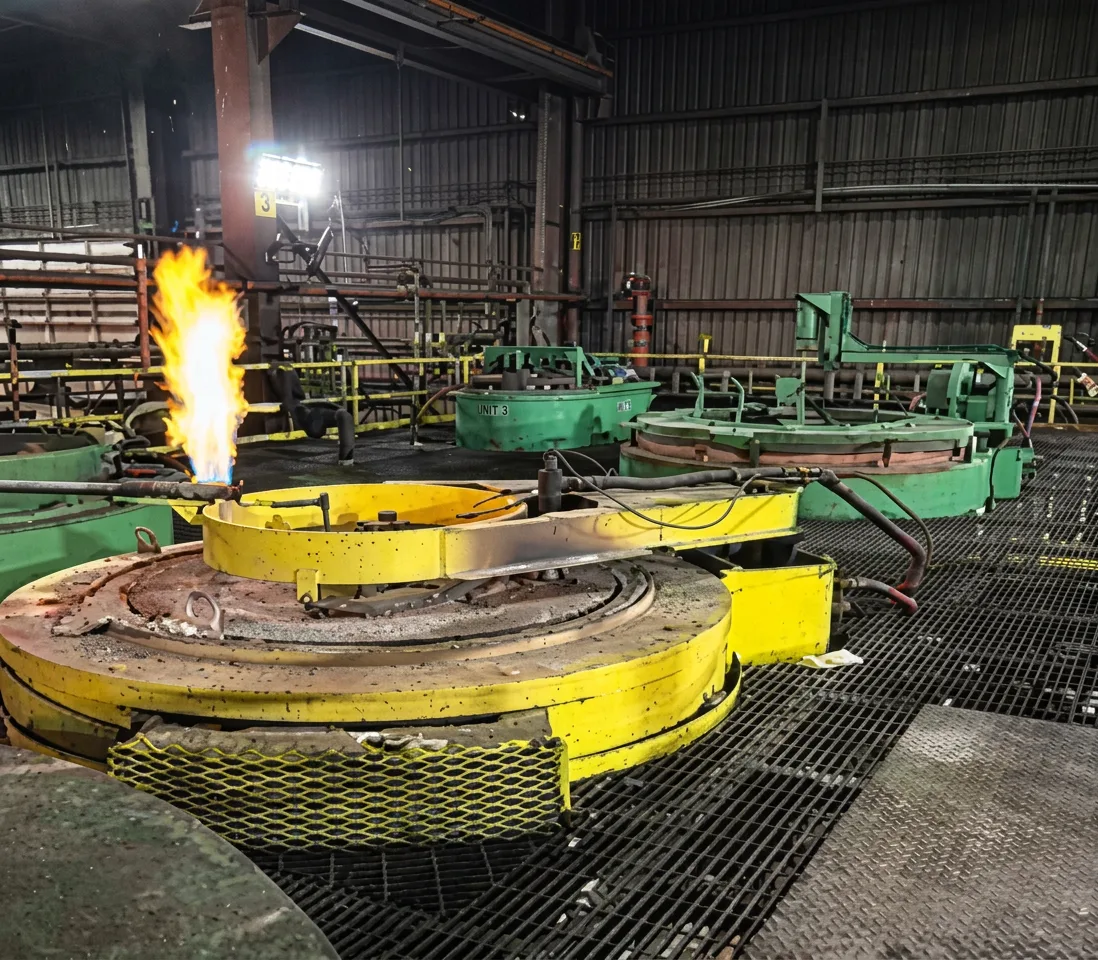

Vertical Heat Treating
Vertical orientation eliminates gravity-induced distortion in long shafts, tubes, and structural members. Polymer or water quench ensures consistent mechanical properties from end to end.
- Max Diameter
- 41"
- Max Length
- 120"
- Max Load
- 4,000 lbs
- Quench
- Polymer or Water
Targeted hardening with N/C precision

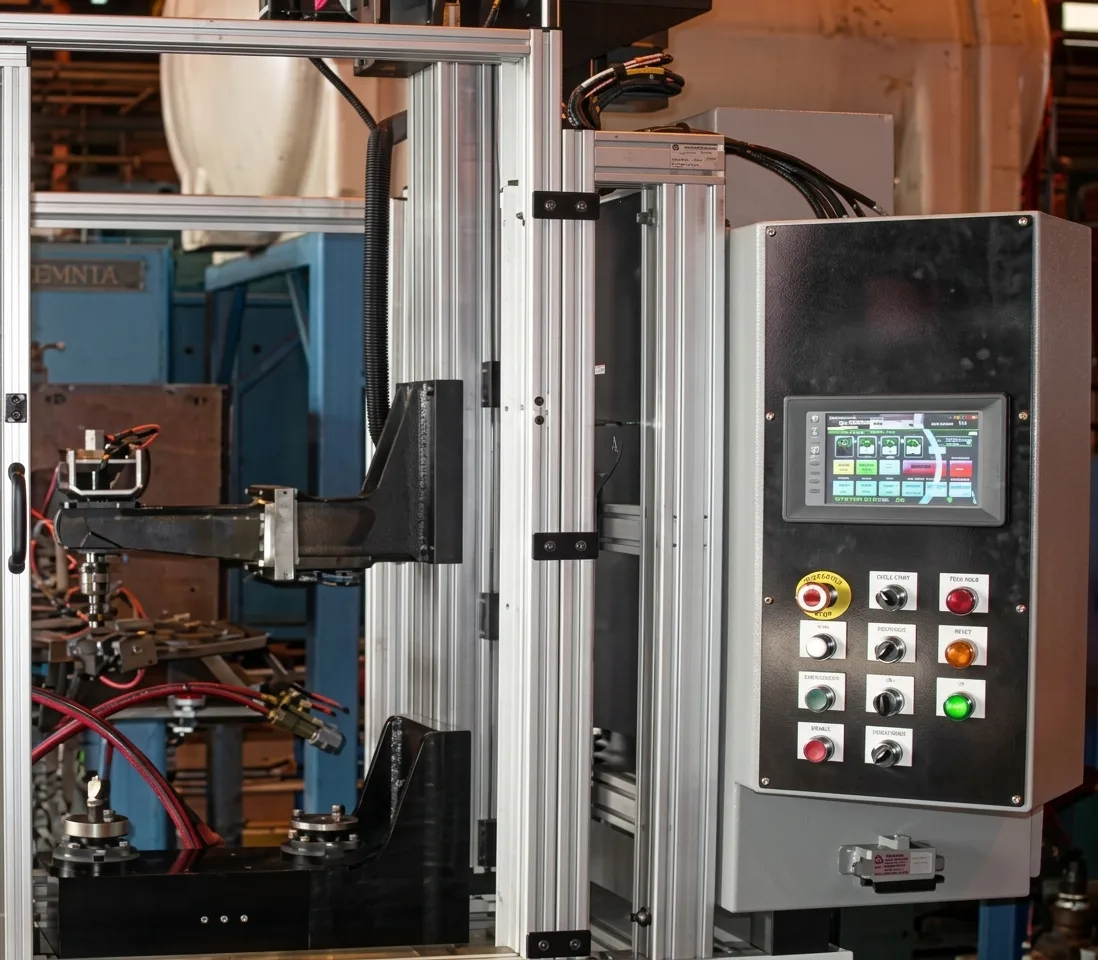

Induction Hardening
Four numerically controlled vertical scanners deliver selective surface hardening with pinpoint accuracy. Deep-case and surface-hardening profiles for shafts, gears, and wear surfaces.
- Scanners
- 4 N/C Vertical
- Power
- Multiple
- Max Length
- 10 ft
- Centers
- 112"
High-throughput processing for bar and tube

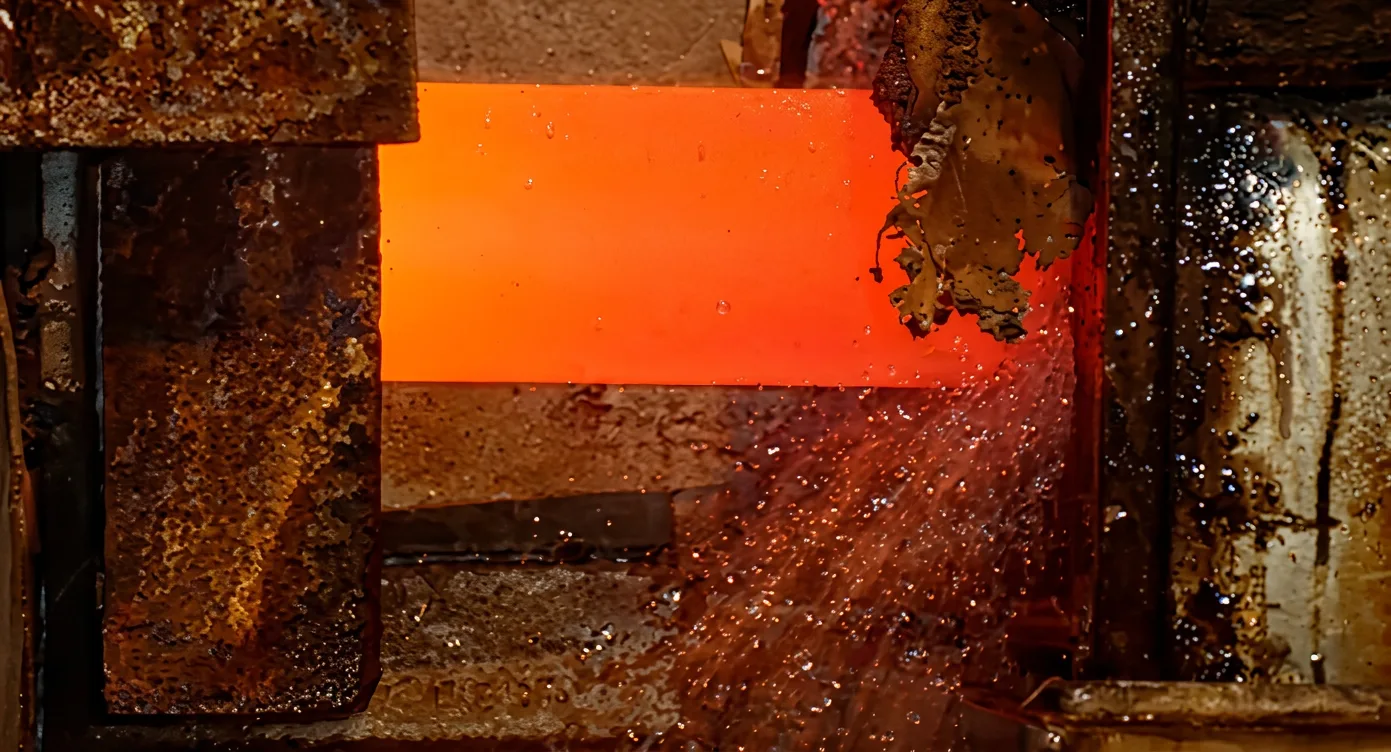

In-Line / Continuous
One Bickley gas-fired barrel furnace with high-pressure water quench and in-line tempering. Stress-free material with temperature uniformity and sample plan inspection.
- Bar Range
- 3"–10" dia
- Tube Range
- 3"–11" dia
- Max Length
- 42 ft
- Quench
- High-Pressure Water
Additional Capabilities
Finishing & Logistics
I.D. Drilling
Internal diameter precision drilling performed before heat treating for specialized industrial applications.
Integrated in-house for reduced lead time
Saw Cutting
Vertical and horizontal band saws capable of cutting material up to 26" O.D.
Cut-to-length before or after treatment
Commercial Straightening
Multiple presses straightening shafts, mandrels, and shapes up to 26" O.D. and 400" long.
Post-treatment straightening to tight tolerances
Ultrasonic Inspection
Non-destructive inspection for material integrity verification before or after thermal processing.
Available with finishing workflows
Free Local Pickup & Delivery
Own fleet of trucks providing free pickup and delivery across the Houston, TX metropolitan area and surrounding Gulf Coast region.
Reduces your logistics overhead
Ready to Get Started?
Tell us about your project and our metallurgists will recommend the right process for your specification.
Request a Quote
